From 3D STED-Lithography to Dip-Pen Nanolithography,  from structuring via AFM or via SEM to UHV deposition and cutting  via FIB, the INT provides a large variety of methods to structure surfaces or even three-dimensional structure. One of the latest additions is the Ceradrop Inkjet printer that is the main instrument of our printable electronics research.

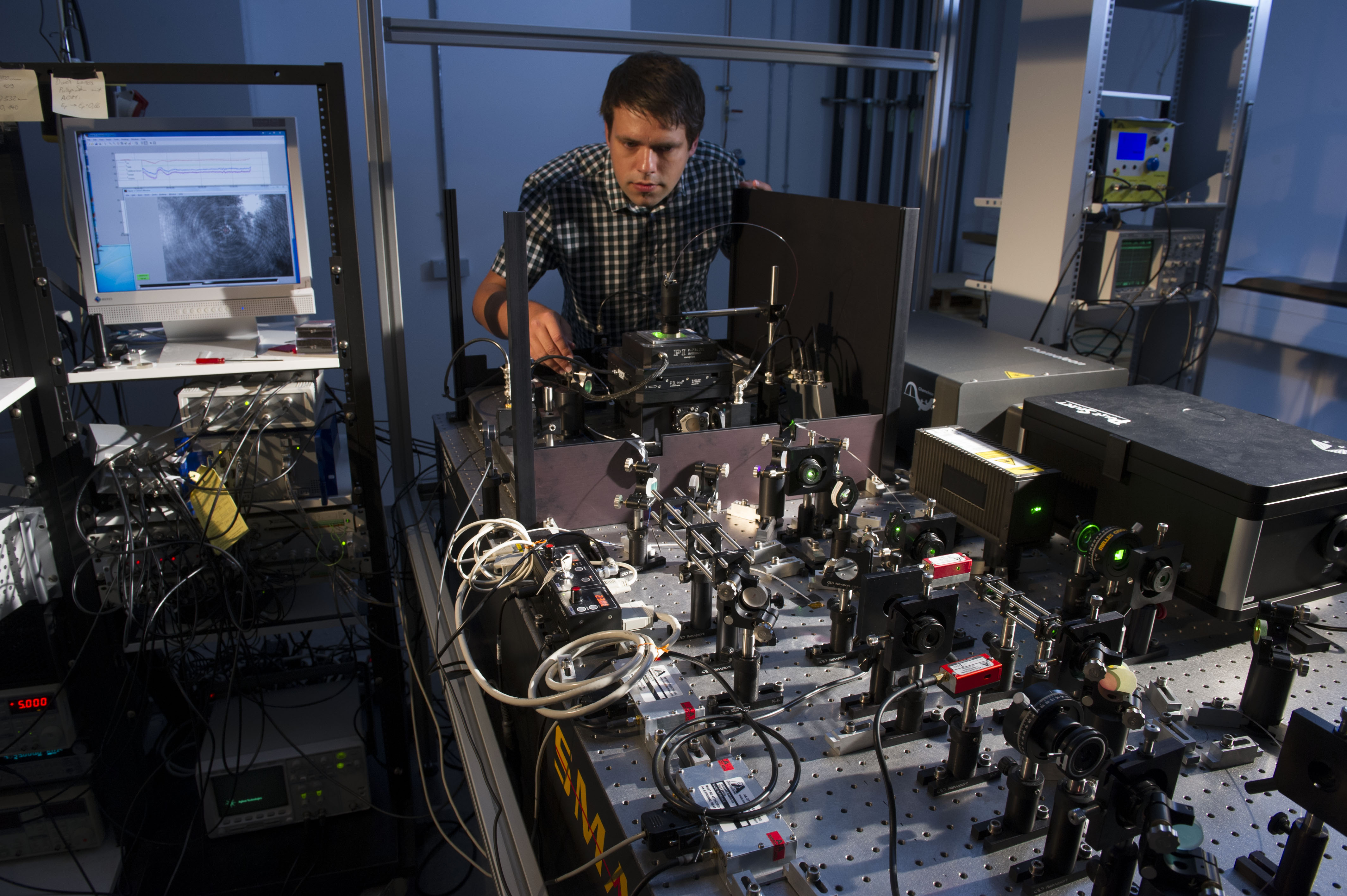

STED Lithography Installation

Patrick Müller

NanoInk Dip-Pen Nanolithography Systems (DPN5000/NLP2000)

Michael Hirtz

Bruker ICON Atomic Force Microscopes

Stefan Walheim

FEI and Zeiss Focused Ion Beam Microscopes

Christian Kübel

Magnetron-Sputtering, Reactive Ion Etching and UHV Vapor Deposition

Detlef Beckmann
