FEI Strata 400 S

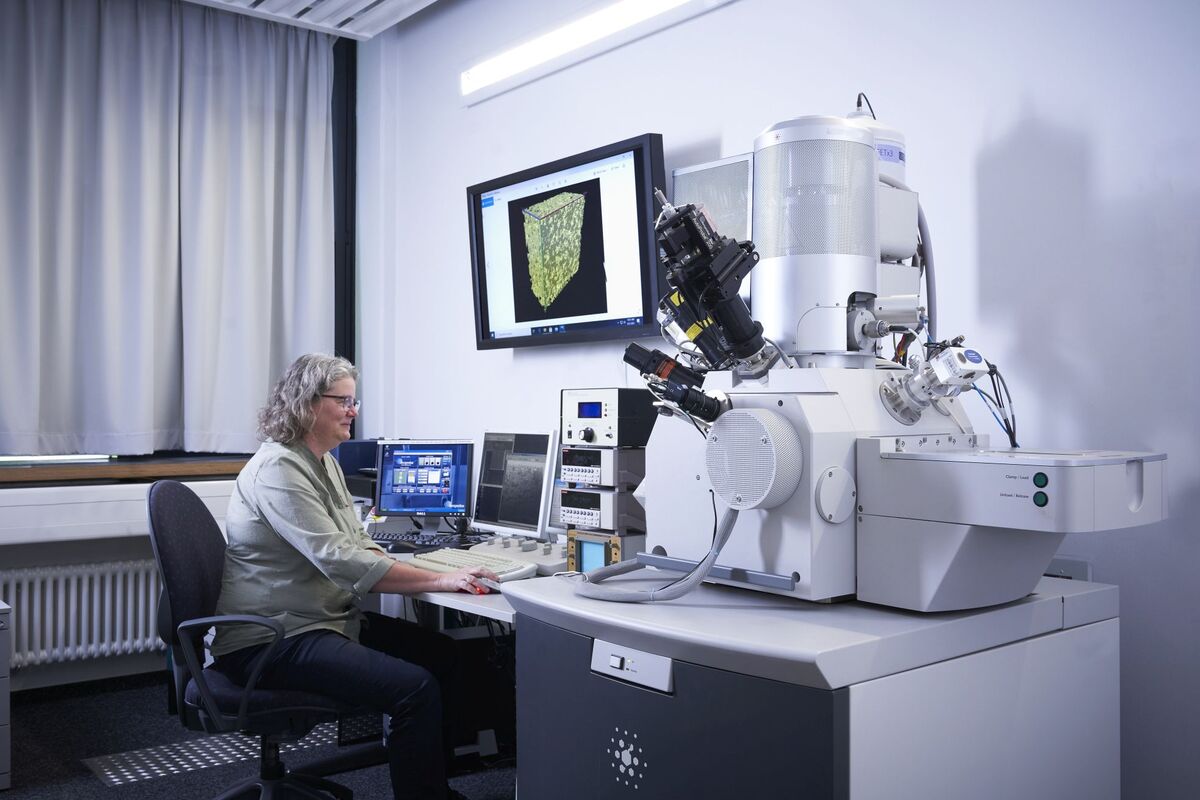

FEI Strata 400
FEI Strata 400

Configuration

  • Operation Voltage:

    • High Tension SEM: 200 V - 30 kV

    • High Tension FIB: 2 kV - 30 kV

  • Source

    • FEG (Schottky)

    • Gallium Liquid Metal Ion Source

  • Imageing Detectors:

    • TLD SE, ETD, BSE, CDEM

    • STEM detector

  • Spectroscopy

    • EDX detector

  • Gas Injection System (GIS)

    • C, Pt, and W

    • XeF2 for selective etch enhancing

  • Manipulators

    • Omniprobe 200 with independent x,y, z motion

    • Flip-stage



Resolution

  30 kV 15 kV 1 kV
Electron Beam [nm] 1.0 1.0 1.9
Gallium Ion Beam  [nm] 7.0



Imaging, Analysis and Sample Preparation Techniques

  • SE & BSE SEM analysis

  • STEM imaging

  • EDX analysis

  • 3D Slice & View tomography

  • TEM sample preparation

  • Nanoscale deposition and contacting
