ThermoFisher Themis-Z

Double Corrected Analytical (S)TEM
Themis-Z

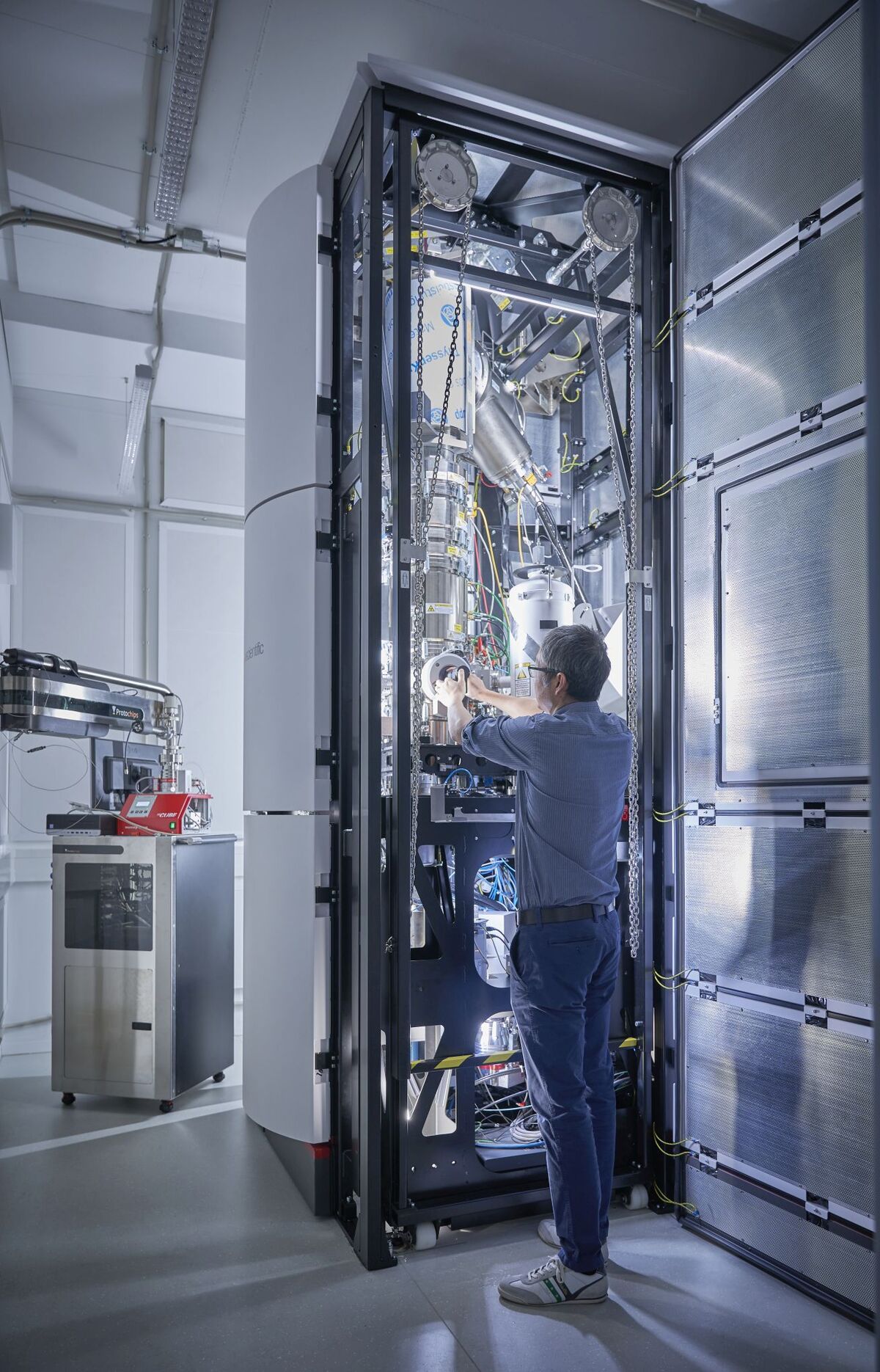

ThermoFisher Themis-Z

Configuration

  • High Tension: 60, 80, 300 kV

  • X-FEG

  • Monochromator

  • Double aberration corrected (TEM and STEM)

  • Super-X EDX detector

  • BF-/seg. DF-/HAADF-STEM detector

  • Gatan Oneview IS camera

  • Gatan GIF Continuum 970 HighRes + K3 IS camera



Resolution

  300 kV 80 kV 60 kV
Information Limit TEM [nm] 0.06 0.09 0.096
Information Limit field-free TEM [nm] 1.0
Resolution STEM [nm] 0.059 0.08 0.1
Resolution field-free STEM [nm] 4.0
EELS Energy Resolution [eV] 0.135 0.135 0.135



Imaging and Analysis Techniques

  • BF-TEM & HRTEM

  • BF-/DF-/HAADF-STEM

  • 4D-STEM: DPC/iDPC/PDF

  • EFTEM, EELS, EDX Analysis

  • (S)TEM & EDX tomography

  • Electron diffraction

  • Lorentz imaging

  • Low-dose techniques & cryo imaging

  • AXON & Clarity in-situ integration
