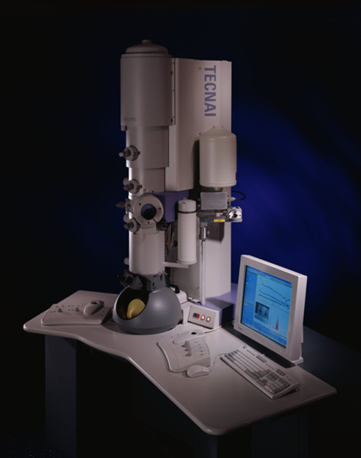

Tecnai F20 ST

Tecnai F20 ST
Tecnai F20 ST

Configuration

  • High Tension: 200 kV

  • FEG (Schottky)

  • HAADF-STEM detector

  • EDAX s-UTW detector

  • GIF 2001

  • NanoMegas ASTASR system



Resolution

  200 kV
Point Resolution TEM [nm] 0.24
Information Limit TEM [nm] 0.15
Resolution STEM [nm] 0.19



Imaging and Analysis Techniques

  • BF-TEM & HRTEM

  • HAADF-STEM

  • ACOM-STEM

  • EDX & EELS analysis

  • (S)TEM tomography

  • Electron diffraction
